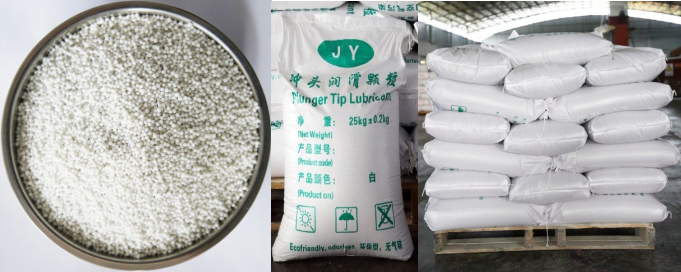

Punch Lubricant Granules
JYW-45 Standard White Granules
Granule size: 1.5 / 2.0 / 2.5 mm
Melting point: 105–110℃
Packaging weight: 25 kg/bag
Wax content: 45%–50%
Composition: 50% polyethylene wax, 50% calcium powder filler

Wax Content Testing Methods
Visual Observation Method:
For the same weight, the larger the volume and the fuller the packaging, the higher the wax content.
Take cups of equal volume, fill them with granules, and weigh them. The lighter sample has a higher wax content.
Wax has a high density and light texture, while calcium powder has a lower density but heavier texture.
Burning Method:
Place 100 grams of granule lubricant into an iron container.
Use a blowtorch to burn thoroughly until the granules fully volatilize into white calcium powder.
Weigh the remaining white calcium powder.
For example, if 100 grams of granules yield 45 grams of white calcium powder, it means 55 grams of wax have volatilized, indicating a wax content of 55%.
Advantages of Using Lubricant Granules
High effective content: Wax content above 45% can effectively improve lubrication and extend the lifespan of the barrel and punch.
Uniform granules with white color: The cast surface will not produce black spots or blemishes.
Hygienic and environmentally friendly: Offers better eco-friendly advantages compared to traditional oil-based lubricants, helping improve the workshop environment.
High cost-performance ratio: More affordable pricing and lower usage amount make this product a better choice.
